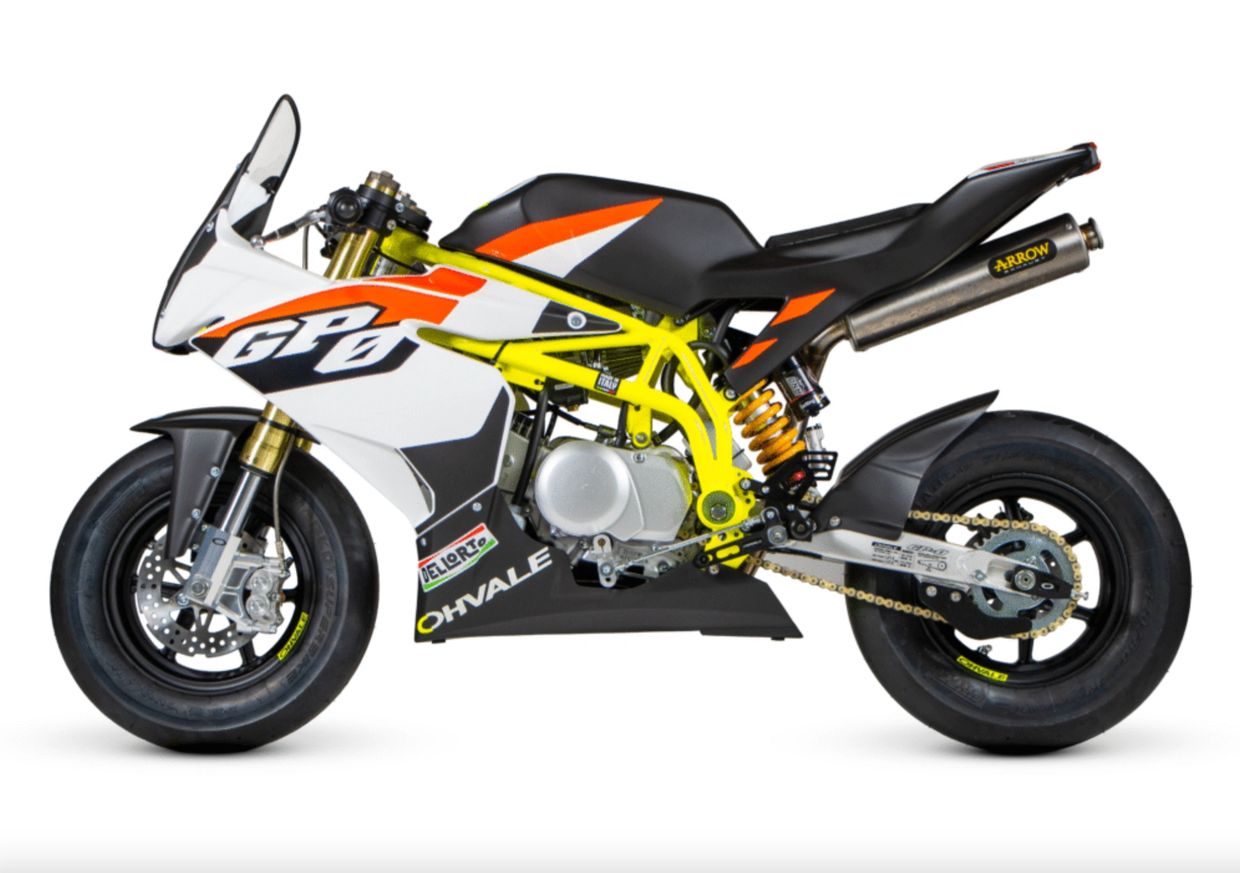

OHVALE GP-0 110 4SPEED EVO
TECHNICAL DETAILS
Ohvale GP-0 110 4S EVO is the first Ohvale equipped with a 4-speed gearbox, designed to introduce future generations of riders to competition and to help them gain confidence with gear shifting. As with every Ohvale, each component has been meticulously assembled to convey the passion and adrenaline of two wheels, with a focus on reliability and a refined attention to detail across every part of the bike. Ohvale GP-0 110 4S EVO Model Year 2026 represents the continuous evolution of an already established racing model: it now features the 5.0 EVO frame with robotic welding in its fluorescent yellow finish, along with new reinforced CNCmachined components with black anodization.
Engine: ZS 110cc, 4 stroke, air cooling
Carburetor: DELLORTO PHBL 24 BS, Ohvale setting
Transmission: 4 speed, N-1-2-3-4
Exhaust: exhaust pipe in stainless steel, single silencer Arrow in titanium, ready for DB killer

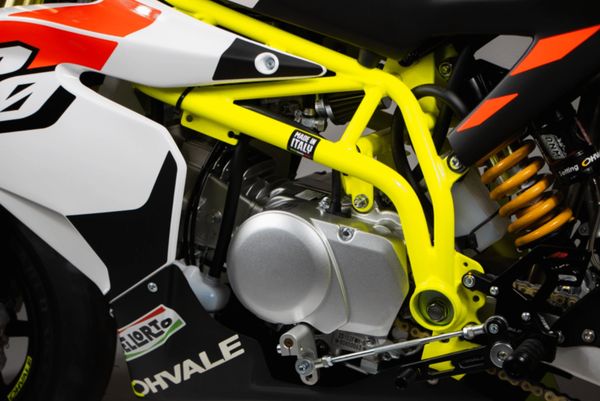

Frame: High-strength steel trellis frame, robotic welding and new fluor yellow color

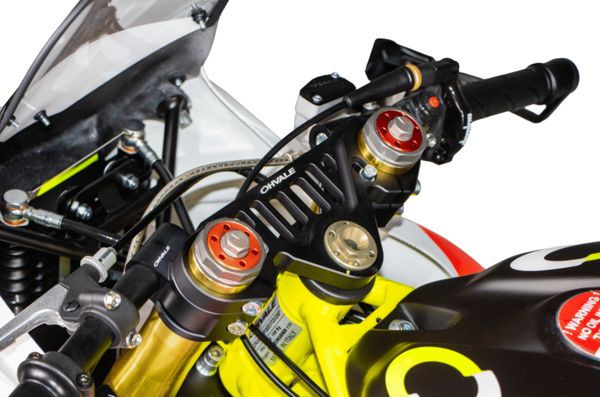

Front suspension: STANDARD: Ø 33mm upside-down fork & CNC foot fork. Spring config. K6-K6 / RACE: Standard config. + Adjustable spring preload
Rear suspension: aluminum swing-arm, Monoshock with piggy-back. Fully adjustable: hydraulic compression and rebound damping, spring preload & wheelbase. Spring config. K140
Front braking system: Single disc Ø 180mm. Formula monoblock radial caliper (4 pistons D24). Sintered brake pads. Axial master cylinder with integrated tank & braided steel hose
Rear braking system: Single disc Ø 155mm. Formula radial caliper (2 pistons D24). Master cylinder with integrated tank & braided steel hose
Footrest:CNC-machined components, reinforced, new design and black anodization
Farings: fiberglass racing fairing
Wheels: Aluminum alloy wheels, design by Ohvale. Front 2,50×10’’ – Rear 3,00×10’’
Tyres: Tubeless Pirelli slick, Front 100/80 -10’’, Rear 120/80-10’’
